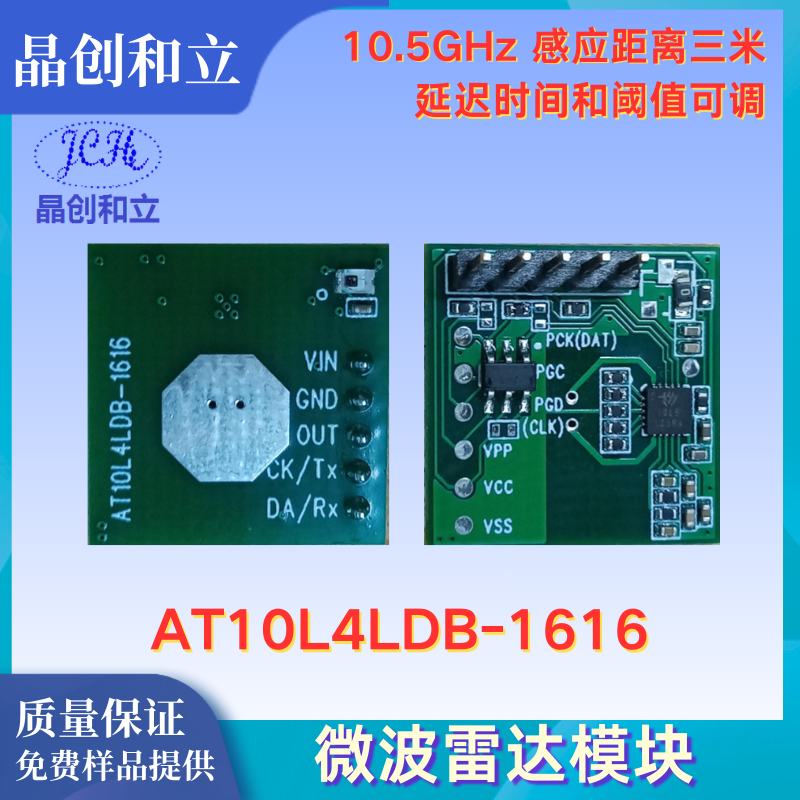

Microwave Module AT10L4LDB-1616

Microwave Module AT10L4LDB-1616

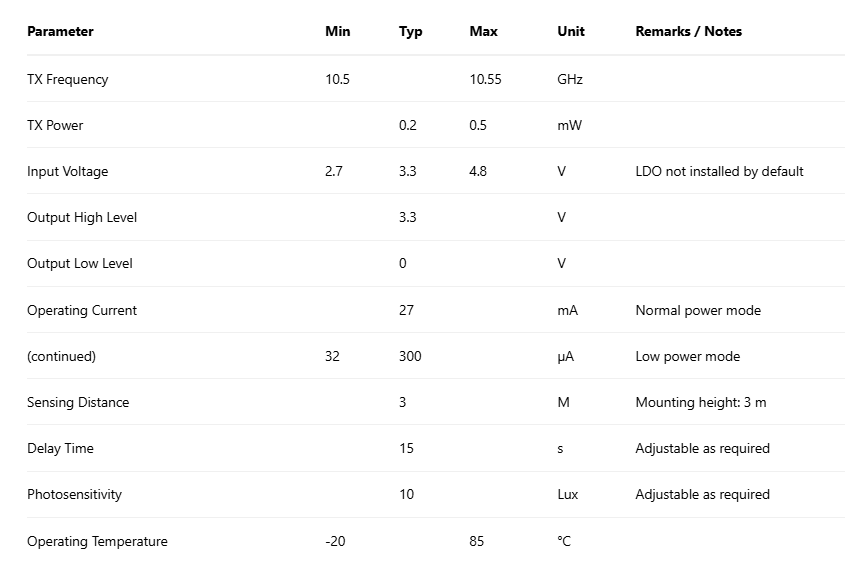

10.525G power consumption, a radar sensor with configurable modes, typical power consumption around 27mA, and in low-power mode, the power consumption can be as low as 55uA. The module size is 16mm*16mm, and the sensor uses the radar sensing chip AT10LP1T1RDB. Due to its low power consumption, high cost-effectiveness, and ease of passing RF certification, this sensor can be widely used in battery-powered lighting, camera wake-up, and other fields.
